Add websocket connection troubleshooting section (#977)
* Remove markdown exceptions for table and code blocks * Fix Zitadel docs errors * Add trailingSlash: false to prevent 404 bug
This commit is contained in:
Jamil
@@ -1,3 +1,7 @@
|
||||
{
|
||||
"MD002": false
|
||||
"MD002": false,
|
||||
"MD013": {
|
||||
"code_blocks": false,
|
||||
"tables": false
|
||||
}
|
||||
}
|
||||
|
||||
@@ -53,10 +53,10 @@
|
||||
<a target="_blank" href="https://docs.firezone.dev/?utm_source=product" title="Documentation" class="navbar-item has-divider is-desktop-icon-only">
|
||||
<span class="icon"><i class="mdi mdi-help-circle-outline"></i></span>
|
||||
</a>
|
||||
<a id="web-ui-connect-success" href="#" title="You are connected to the Firezone Web UI." class="navbar-item has-divider is-desktop-icon-only">
|
||||
<a id="web-ui-connect-success" href="#" title="Secure websocket connected." class="navbar-item has-divider is-desktop-icon-only">
|
||||
<span class="icon has-text-success"><i class="mdi mdi-wifi"></i></span>
|
||||
</a>
|
||||
<a id="web-ui-connect-error" href="#" title="You are disconnected from the Firezone Web UI." class="is-hidden navbar-item has-divider is-desktop-icon-only">
|
||||
<a id="web-ui-connect-error" href="#" title="Secure websocket not connected! Check docs.firezone.dev/administer/troubleshoot for help." class="is-hidden navbar-item has-divider is-desktop-icon-only">
|
||||
<span class="icon has-text-danger"><i class="mdi mdi-wifi-off"></i></span>
|
||||
</a>
|
||||
</div>
|
||||
|
||||
@@ -6,8 +6,6 @@ sidebar_position: 2
|
||||
Your Firezone installation can be managed via the `firezone-ctl` command, as
|
||||
shown below. Most subcommands require prefixing with `sudo`.
|
||||
|
||||
<!-- markdownlint-disable MD013 -->
|
||||
|
||||
```text
|
||||
root@demo:~# firezone-ctl
|
||||
I don't know that command.
|
||||
@@ -65,5 +63,3 @@ Service Management Commands:
|
||||
usr2
|
||||
Send the services a USR2.
|
||||
```
|
||||
|
||||
<!-- markdownlint-enable MD013 -->
|
||||
|
||||
@@ -12,8 +12,6 @@ detailed [below](#production-deployments).
|
||||
|
||||
Shown below is a table of ports used by Firezone services.
|
||||
|
||||
<!-- markdownlint-disable MD013 -->
|
||||
|
||||
| Service | Default port | Listen address | Description |
|
||||
| ------ | --------- | ------- | --------- |
|
||||
| Nginx | `443` | `all` | Public HTTPS port for administering Firezone and facilitating authentication. |
|
||||
@@ -22,8 +20,6 @@ Shown below is a table of ports used by Firezone services.
|
||||
| Postgresql | `15432` | `127.0.0.1` | Local-only port used for bundled Postgresql server. |
|
||||
| Phoenix | `13000` | `127.0.0.1` | Local-only port used by upstream elixir app server. |
|
||||
|
||||
<!-- markdownlint-enable MD013 -->
|
||||
|
||||
## Production deployments
|
||||
|
||||
For production and public-facing deployments where a single administrator
|
||||
|
||||
@@ -4,10 +4,51 @@ sidebar_position: 5
|
||||
---
|
||||
|
||||
For any problems that arise, a good first bet is to check the Firezone logs.
|
||||
Firezone logs are stored in `/var/log/firezone` and can be viewed with
|
||||
`sudo firezone-ctl tail`.
|
||||
|
||||
To view Firezone logs, run `sudo firezone-ctl tail`.
|
||||
## Debugging Portal Websocket Connectivity Issues
|
||||
|
||||
## Debugging Connectivity Issues
|
||||
The portal UI requires a secure websocket connection to function. To facilitate
|
||||
this, the Firezone phoenix service checks the `Host` header for inbound
|
||||
websocket connections and only permits the connection if it matches the host
|
||||
portion of your `default['firezone']['external_url']` variable.
|
||||
|
||||
If a secure websocket connection can't be established, you'll see a red dot
|
||||
indicator in the upper-right portion of the Firezone web UI and a corresponding
|
||||
message when you hover over it:
|
||||
|
||||
```text
|
||||
Secure websocket not connected! ...
|
||||
```
|
||||
|
||||
If you're accessing Firezone using the same URL defined in your
|
||||
`default['firezone']['external_url']` variable from above, the issue is likely
|
||||
to be in your reverse proxy configuration.
|
||||
|
||||
In most cases, you'll find clues in one or more of the following locations:
|
||||
|
||||
* Your browser's developer tool logs, specifically the `Network` tab.
|
||||
* `sudo firezone-ctl tail nginx`
|
||||
* `sudo firezoen-ctl tail phoenix`
|
||||
|
||||
If the websocket connection is successful, you should see output in the
|
||||
`phoenix` service logs similar the following:
|
||||
|
||||
```text
|
||||
2022-09-23_15:05:47.29158 15:05:47.291 [info] CONNECTED TO Phoenix.LiveView.Socket in 24µs
|
||||
2022-09-23_15:05:47.29160 Transport: :websocket
|
||||
2022-09-23_15:05:47.29160 Serializer: Phoenix.Socket.V2.JSONSerializer
|
||||
2022-09-23_15:05:47.29161 Parameters: %{"_csrf_token" => "XFEFCHQ2fRQABQwtKQdCJDlFAzEcCCJvn7LqDsMXE4eGZtsBzuwVRCJ6", "_mounts" => "0", "_track_static" => %{"0" => "https://demo.firez.one/dist/admin-02fabe0f543c64122dbf5bc5b3451e51.css?vsn=d", "1" => "https://demo.firez.one/dist/admin-04e75c78295062c2c07af61be50248b0.js?vsn=d"}, "vsn" => "2.0.0"}
|
||||
2022-09-23_15:05:47.33655 15:05:47.336 [info] CONNECTED TO FzHttpWeb.UserSocket in 430µs
|
||||
2022-09-23_15:05:47.33657 Transport: :websocket
|
||||
2022-09-23_15:05:47.33658 Serializer: Phoenix.Socket.V2.JSONSerializer
|
||||
2022-09-23_15:05:47.33658 Parameters: %{"token" => "SFMyNTY.g2gDYQFuBgB6HeJqgwFiAAFRgA.qKoC2bi9DubPkE0tfaRSPERWUFyQQPQV5n4nFKVppxc", "vsn" => "2.0.0"}
|
||||
2022-09-23_15:05:47.35063 15:05:47.350 [info] JOINED notification:session in 636µs
|
||||
2022-09-23_15:05:47.35065 Parameters: %{"token" => "SFMyNTY.g2gDYQFuBgB6HeJqgwFiAAFRgA.zSG7pefm-Vgf_zvduxa5E9VK4s8PKqzc0xBDGNx5FQE", "user_agent" => "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:106.0) Gecko/20100101 Firefox/106.0"}
|
||||
```
|
||||
|
||||
## Debugging WireGuard Connectivity Issues
|
||||
|
||||
Most connectivity issues with Firezone are caused by other `iptables` or
|
||||
`nftables` rules which interfere with Firezone's operation. If you have rules
|
||||
@@ -52,11 +93,12 @@ To Action From
|
||||
|
||||
## Need additional help?
|
||||
|
||||
If you're looking for help installing, configuring, or using Firezone, we're
|
||||
happy to help.
|
||||
Try asking on one of our community-powered support channels:
|
||||
|
||||
* [Discussion Forums](https://discourse.firez.one/): ask questions, report bugs,
|
||||
and suggest features
|
||||
* [Public Slack Group](https://join.slack.com/t/firezone-users/shared_invite/zt-111043zus-j1lP_jP5ohv52FhAayzT6w):
|
||||
join discussions, meet other users, and meet the contributors
|
||||
* [Email Us](mailto:team@firezone.dev): we're always happy to chat
|
||||
|
||||
We highly recommend considering [priority support](https://firezone.dev/pricing)
|
||||
if you're deploying Firezone in a production capacity.
|
||||
|
||||
@@ -25,44 +25,54 @@ to provide Firezone with the user's email in the returned claims.
|
||||
|
||||
|
||||
## Requirements
|
||||
- Setup your own Zitadel Cloud account: https://zitadel.cloud/
|
||||
- Create your first Zitadel instance the Zitadel Customerportal https://zitadel.cloud/admin/instances
|
||||
- Login to your Zitadel instance and create a project (i.e. "Internal")
|
||||
|
||||
More information about these steps: https://docs.zitadel.com/docs/guides/start/quickstart#try-out-zitadel-cloud
|
||||
* Setup your own [Zitadel Cloud](https://zitadel.cloud/) account.
|
||||
* Create your first Zitadel instance in the
|
||||
[Zitadel Customer portal](https://zitadel.cloud/admin/instances)
|
||||
* Login to your Zitadel instance and create a project (i.e. "Internal")
|
||||
|
||||
More information about these steps can be found in
|
||||
[Zitadel's documentation](https://docs.zitadel.com/docs/guides/start/quickstart#try-out-zitadel-cloud).
|
||||
|
||||
## Create Zitadel Application
|
||||
|
||||
In the Instance Console, go to **Projects** and select the project you want. Click
|
||||
**New**.
|
||||
In the Instance Console, go to **Projects** and select the project you want,
|
||||
then click **New**.
|
||||
|
||||
|
||||
Give the application a name (i.e. "Firezone") and select the application type **WEB**.
|
||||
Give the application a name (e.g. "Firezone") and select **WEB**
|
||||
for the application type.
|
||||
|
||||
|
||||
Select **CODE** for the authentication method.
|
||||
|
||||
|
||||
Specify the redirect URI and post logout URI. The redirect URI will be of the form `EXTERNAL_URL + /auth/oidc/zitadel/callback/`. The post logout URI can just be the `EXTERNAL_URL`.
|
||||
Specify the redirect URI and post logout URI. The redirect URI will be of the
|
||||
form `EXTERNAL_URL + /auth/oidc/zitadel/callback/`. The post logout URI can
|
||||
just be the `EXTERNAL_URL`.
|
||||
|
||||
|
||||
Check all the overview of the configuration and clich on **Create**.
|
||||
Double-check the configuration, then click **Create**.
|
||||
|
||||
|
||||
Copy the **ClientId** and **ClientSecret** as it will be used for the firezone configuration.
|
||||
Copy the **ClientId** and **ClientSecret** as it will be used for the Firezone
|
||||
configuration.
|
||||
|
||||
|
||||
In the application **Configuration** click on **Refresh Token** and then on **Save**. The refresh token is optional for some features of firezone.
|
||||
In the application **Configuration** click **Refresh Token** and then on
|
||||
**Save**. The refresh token is optional for some features of Firezone.
|
||||
|
||||
|
||||
In the application **Token Settings** select **User roles inside ID Token** and **User Info inside ID Token**. Save it with a click on **Save**.
|
||||
In the application **Token Settings** select **User roles inside ID Token** and
|
||||
**User Info inside ID Token**. Save it with a click on **Save**.
|
||||
|
||||
|
||||
## Integrate With Firezone
|
||||
|
||||
Edit `/etc/firezone/firezone.rb` to include the options below. Your `discovery_document_url`
|
||||
will be `/.well-known/openid-configuration` appended to the end of your zitadel instance domain.
|
||||
You can find this domain for example in the application under **Urls**.
|
||||
Edit `/etc/firezone/firezone.rb` to include the options below. Your
|
||||
`discovery_document_url` will be `/.well-known/openid-configuration` appended
|
||||
to the end of your Zitadel instance domain. You can find this domain for
|
||||
example in the application under **Urls**.
|
||||
|
||||
```ruby
|
||||
# Using Zitadel as the SSO identity provider
|
||||
@@ -83,9 +93,10 @@ Run `firezone-ctl reconfigure` to update the application.
|
||||

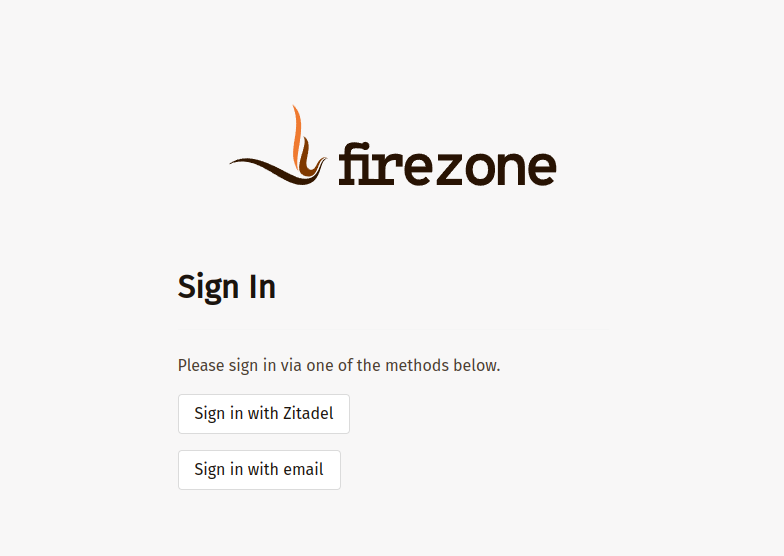

You should now see a **Sign in with Zitadel** button at the root Firezone URL.
|
||||
|
||||
|
||||
|
||||
## Restricting Access to only Users with Roles
|
||||
|
||||
Zitadel can limit the users with access to the Firezone app. To do this,
|
||||
go to the project where your created your application in. In **General** you can find **Check authorization on Authentication** which allows only user to login, and thus use firezone, if they have assigned at least one role.
|
||||
Zitadel can limit which users have access to Firezone. To do this,
|
||||
go to the project where your created your application. In **General** you can
|
||||
find **Check Authorization on Authentication** which allows only users with at
|
||||
least one role to login to Firezone.
|
||||
|
||||
|
||||
@@ -5,8 +5,6 @@ sidebar_position: 1
|
||||
|
||||
Firezone currently supports the following platforms:
|
||||
|
||||
<!-- markdownlint-disable MD013 -->
|
||||
|
||||
| OS | Architectures | Status | Notes |
|
||||
| --- | --- | --- | --- |
|
||||
| AmazonLinux 2 | `amd64` `arm64` | **Fully-supported** | See [AmazonLinux 2 Notes](#amazonlinux-2-notes) |
|
||||
@@ -26,8 +24,6 @@ Firezone currently supports the following platforms:
|
||||
| Ubuntu 22.04 | `amd64` `arm64` | **Fully-supported** | Works as-is |
|
||||
| openSUSE Leap 15.3 | `amd64` | **Fully-supported** | See [openSUSE Notes](#opensuse-notes) |
|
||||
|
||||
<!-- markdownlint-enable MD013 -->
|
||||
|
||||
If your distro isn't listed here please try using a package for the closest
|
||||
distro first. For example, since Raspberry Pi OS is based on Debian, try using
|
||||
the Debian Firezone package.
|
||||
|
||||
@@ -6,7 +6,6 @@ sidebar_position: 1
|
||||
Shown below is a complete listing of the configuration options available in
|
||||
`/etc/firezone/firezone.rb`.
|
||||
|
||||
<!-- markdownlint-disable MD013 -->
|
||||
<!-- markdownlint-disable MD033 -->
|
||||
<!-- markdownlint-disable MD034 -->
|
||||
|
||||
@@ -172,6 +171,5 @@ Shown below is a complete listing of the configuration options available in
|
||||
| `default['firezone']['connectivity_checks']['enabled']` | Enable or disable the Firezone connectivity checks service. | `true` |
|
||||
| `default['firezone']['connectivity_checks']['interval']` | Interval between connectivity checks in seconds. | `3_600` |
|
||||
|
||||
<!-- markdownlint-enable MD013 -->
|
||||
<!-- markdownlint-enable MD033 -->
|
||||
<!-- markdownlint-enable MD034 -->
|
||||
|
||||
@@ -7,8 +7,6 @@ Here you'll find a listing of files and directories related to a typical
|
||||
Firezone installation. These could change depending on changes to your
|
||||
configuration file.
|
||||
|
||||
<!-- markdownlint-disable MD013 -->
|
||||
|
||||
| path | description |
|
||||
| --- | --- |
|
||||
| `/var/opt/firezone` | Top-level directory containing data and generated configuration for Firezone bundled services. |
|
||||
@@ -16,5 +14,3 @@ configuration file.
|
||||
| `/usr/bin/firezone-ctl` | `firezone-ctl` utility for managing your Firezone installation. |
|
||||
| `/etc/systemd/system/firezone-runsvdir-start.service` | systemd unit file for starting the Firezone runsvdir supervisor process. |
|
||||
| `/etc/firezone` | Firezone configuration files. |
|
||||
|
||||
<!-- markdownlint-disable MD013 -->
|
||||
|
||||
@@ -46,8 +46,6 @@ firezone-ctl restart phoenix
|
||||
|
||||
#### Base Firewall Template
|
||||
|
||||
<!-- markdownlint-disable MD013 -->
|
||||
|
||||
```shell
|
||||
#!/usr/sbin/nft -f
|
||||
|
||||
@@ -318,8 +316,6 @@ table inet nat {
|
||||
}
|
||||
```
|
||||
|
||||
<!-- markdownlint-enable MD013 -->
|
||||
|
||||
#### Usage
|
||||
|
||||
The firewall should be stored in the relevant location for the Linux distribution
|
||||
|
||||
@@ -18,7 +18,7 @@ const config = {
|
||||
// If you aren't using GitHub pages, you don't need these.
|
||||
organizationName: "firezone", // Usually your GitHub org/user name.
|
||||
projectName: "firezone", // Usually your repo name.
|
||||
trailingSlash: false,
|
||||
trailingSlash: true,
|
||||
|
||||
// Even if you don't use internalization, you can use this field to set useful
|
||||
// metadata like html lang. For example, if your site is Chinese, you may want
|
||||
|
||||
