Add google SAML doc and update existing guides (#1127)
This commit is contained in:
Jason G
@@ -23,6 +23,8 @@ identity providers using our Generic OIDC integration:
|
||||
* [Azure Active Directory](oidc/azuread)
|
||||
* [Google](oidc/google)
|
||||
* [Onelogin](oidc/onelogin)
|
||||
* [JumpCloud](saml/jumpcloud)
|
||||
* [Keycloak](oidc/keycloak)
|
||||
* [Zitadel](oidc/zitadel)
|
||||
* [Auth0](oidc/auth0)
|
||||
|
||||
|
||||
@@ -10,11 +10,12 @@ Firezone supports Single Sign-On (SSO) via SAML 2.0.
|
||||
In general, most identity providers that support SAML 2.0 should work with
|
||||
Firezone.
|
||||
|
||||
| Provider | Support Status | Notes |
|
||||
| --- | --- | --- |
|
||||
| [Okta](okta) | **Tested and supported** | |
|
||||
| [Onelogin](onelogin) | **Tested and supported** | |
|
||||
| [Jumpcloud](jumpcloud) | **Tested and supported** | Uncheck `Require signed envelopes` |
|
||||
| Provider | Support Status | Notes |
|
||||
| --- | --- | --- |
|
||||
| [Okta](okta) | **Tested and supported** | |
|
||||
| [Google Workspace](google) | **Tested and supported** | Uncheck `Require signed envelopes` |
|
||||
| [OneLogin](onelogin) | **Tested and supported** | |
|
||||
| [JumpCloud](jumpcloud) | **Tested and supported** | Uncheck `Require signed envelopes` |
|
||||
|
||||
Occasionally, providers that don't implement the full SAML 2.0 standard or use
|
||||
uncommon configurations may be problematic. If this is the case, [contact us](
|
||||
|
||||
53
docs/docs/authenticate/saml/google.mdx
Normal file
53
docs/docs/authenticate/saml/google.mdx
Normal file
@@ -0,0 +1,53 @@
|
||||
---
|
||||
title: Google Workspace
|
||||
sidebar_position: 2
|
||||
description: Firezone's WireGuard®-based remote access platform supports using Google as a single sign-on provider using a SAML 2.0 connector.
|
||||
---
|
||||
|
||||
:::note
|
||||
This guide assumes you have completed the prerequisite steps
|
||||
(e.g. generate self-signed X.509 certificates) outlined [here](/authenticate/saml#prerequisites).
|
||||
:::
|
||||
|
||||
Firezone supports Single Sign-On (SSO) using Google through the generic SAML 2.0
|
||||
connector. This guide will walk you through how to configure the integration.
|
||||
|
||||
## Create a SAML connector
|
||||
|
||||
In the Google Workspace admin portal, create a new SAML app under
|
||||
the Application > Web and mobile apps tab. Use the following config values during setup:
|
||||
|
||||
| Setting | Value |
|
||||
|-----------------|------------------------------------------------------------------------------------------------------------------------------------------|
|
||||
| App name | Firezone |
|
||||
| App icon | [save link as](https://user-images.githubusercontent.com/52545545/202567638-513dba14-ea8c-4da8-8f75-341310f1e456.png) |
|
||||
| ACS URL | This is your Firezone `EXTERNAL_URL/auth/saml/sp/consume/:config_id` (e.g., `https://firezone.company.com/auth/saml/sp/consume/google`). |
|
||||
| Entity ID | This should be the same as your Firezone `SAML_ENTITY_ID`, defaults to `urn:firezone.dev:firezone-app`. |
|
||||
| Signed response | Checked. |
|
||||
| Name ID format | Unspecified |
|
||||
| Name ID | Basic Information > Primary email |
|
||||
|
||||
|
||||
|
||||
Once complete, save the changes and download the SAML metadata document. You'll need
|
||||
to copy-paste the contents of this document into the Firezone portal in the next step.
|
||||
|
||||
## Add SAML identity provider to Firezone
|
||||
|
||||
In the Firezone portal, add a SAML identity provider under the Security tab
|
||||
by filling out the following information:
|
||||
|
||||
| Setting | Value | Notes |
|
||||
|---------------------------|----------------|----------------------------------------------------------------------------------------------------------------------------------------|
|
||||
| Config ID | google | Firezone uses this value to construct endpoints required in the SAML authentication flow (e.g., receiving assertions, login requests). |
|
||||
| Label | Google | Appears on the sign in button for authentication. |
|
||||
| Metadata | see note | Paste the contents of the SAML metadata document you downloaded in the previous step from Google. |
|
||||
| Sign assertions | Checked. | |
|
||||
| Sign metadata | Checked. | |
|
||||
| Require signed assertions | Checked. | |
|
||||
| Required signed envelopes | **Unchecked.** | |
|
||||
|
||||
|
||||
|
||||
After saving the SAML config, you should see a `Sign in with Google` button
|
||||
on your Firezone portal sign-in page.
|
||||
@@ -1,19 +1,20 @@
|
||||
---
|
||||
title: Jumpcloud
|
||||
sidebar_position: 2
|
||||
description: Firezone's WireGuard®-based remote access platform supports using Jumpcloud as a single sign-on provider using a SAML 2.0 connector.
|
||||
title: JumpCloud
|
||||
sidebar_position: 4
|
||||
description: Firezone's WireGuard®-based remote access platform supports using JumpCloud as a single sign-on provider using a SAML 2.0 connector.
|
||||
---
|
||||
|
||||
:::note
|
||||
This guide assumes you have completed the prerequisite steps outlined [here](/authenticate/saml).
|
||||
This guide assumes you have completed the prerequisite steps
|
||||
(e.g. generate self-signed X.509 certificates) outlined [here](/authenticate/saml#prerequisites).
|
||||
:::
|
||||
|
||||
Firezone supports Single Sign-On (SSO) using Jumpcloud through the generic SAML 2.0 connector.
|
||||
Firezone supports Single Sign-On (SSO) using JumpCloud through the generic SAML 2.0 connector.
|
||||
This guide will walk you through how to configure the integration.
|
||||
|
||||
## Create a SAML connector
|
||||
|
||||
In the Jumpcloud admin portal, create a new App under
|
||||
In the JumpCloud admin portal, create a new App under
|
||||
the SSO tab. At the bottom of the popup window, click `Custom SAML App`.
|
||||
|
||||
After entering your desired value for `Display Label`, click the `SSO` tab,
|
||||
@@ -28,12 +29,13 @@ then use the following configuration values:
|
||||
| SAMLSubject NameID Format | Leave at the default. |
|
||||
| Signature Algorithm | `RSA-SHA256` |
|
||||
| Sign Assertion | **Checked**. |
|
||||
| Login URL | This is your Firezone `EXTERNAL_URL/auth/saml/auth/signin/:config_id`, e.g. `https://firezone.company.com/auth/saml/auth/signin/jumpcloud`|
|
||||
|
||||
Leave the rest of the settings unchanged, then click the `activate` button at the bottom-right.
|
||||
|
||||

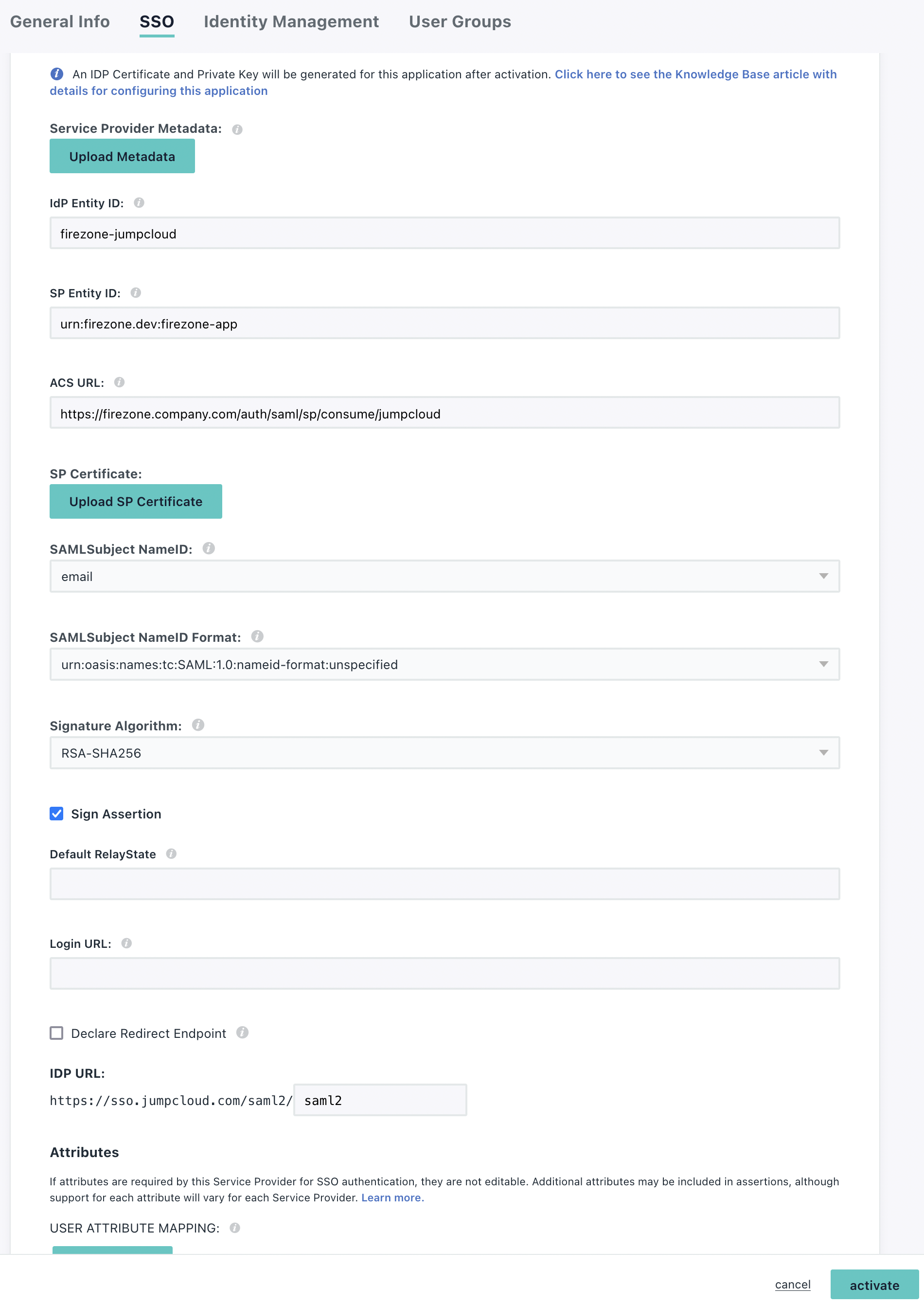

Your Jumpcloud configuration should now resemble the following:
|
||||
Your JumpCloud configuration should now resemble the following:
|
||||
|
||||
|
||||
|
||||
|
||||
Now, download the IdP Metadata document by selecting the App you just created
|
||||
and then clicking the `export metadata` button in the upper-right. You'll need
|
||||
@@ -47,9 +49,9 @@ by filling out the following information:
|
||||
| Setting | Value | Notes |
|
||||
| --- | --- | --- |
|
||||
| Config ID | `jumpcloud` | Firezone uses this value to construct endpoints required in the SAML authentication flow (e.g., receiving assertions, login requests). |
|
||||
| Label | `Jumpcloud` | Appears on the sign in button for authentication. |
|
||||
| Label | `JumpCloud` | Appears on the sign in button for authentication. |
|
||||
| Base URL | Leave unchanged. | |
|
||||
| Metadata | see note | Copy-paste the contents of the SAML metadata document you downloaded in the previous step from Jumpcloud. |
|
||||
| Metadata | see note | Copy-paste the contents of the SAML metadata document you downloaded in the previous step from JumpCloud. |
|
||||
| Sign assertions | Checked. | |
|
||||
| Sign metadata | Checked. | |
|
||||
| Require signed assertions | Checked. | |
|
||||
@@ -57,7 +59,7 @@ by filling out the following information:
|
||||
|
||||
Your Firezone configuration should now resemble the following:
|
||||
|
||||
|
||||
|
||||
|
||||
After saving the SAML config, you should see a `Sign in with Jumpcloud` button
|
||||
After saving the SAML config, you should see a `Sign in with JumpCloud` button
|
||||
on your Firezone portal sign-in page.
|
||||
|
||||
@@ -6,7 +6,7 @@ description: Firezone's WireGuard®-based remote access platform supports using
|
||||
|
||||
:::note
|
||||
This guide assumes you have completed the prerequisite steps
|
||||
outlined [here](/authenticate/saml).
|
||||
(e.g. generate self-signed X.509 certificates) outlined [here](/authenticate/saml#prerequisites).
|
||||
:::
|
||||
|
||||
Firezone supports Single Sign-On (SSO) using Okta through the generic SAML 2.0 connector. This guide will walk you through how to configure the integration.
|
||||
@@ -17,32 +17,41 @@ In the Okta admin portal, create a new app integration under
|
||||
the Application tab. Select `SAML 2.0` as the authentication method.
|
||||
Use the following config values during setup:
|
||||
|
||||
| Setting | Value |
|
||||
|--- |--- |
|
||||
| App name | `Firezone` |
|
||||
| App logo | [save link as](https://user-images.githubusercontent.com/52545545/155907625-a4f6c8c2-3952-488d-b244-3c37400846cf.png) |
|
||||
| Single sign on URL | `https://firezone.company.com/auth/saml/sp/consume/okta` |
|
||||
| Audience (EntityID) | `urn:firezone.dev:firezone-app` |
|
||||
| Name ID format | `EmailAddress` |
|
||||
| Application username | `Email` |
|
||||
| Update application username on | `Create and update` |
|
||||
| Setting | Value |
|
||||
|--------------------------------|---------------------------------------------------------------------------------------------------------------------------------------|
|
||||
| App name | Firezone |
|
||||
| App logo | [save link as](https://user-images.githubusercontent.com/52545545/155907625-a4f6c8c2-3952-488d-b244-3c37400846cf.png) |
|
||||
| Single sign on URL | This is your Firezone `EXTERNAL_URL/auth/saml/sp/consume/:config_id` (e.g., `https://firezone.company.com/auth/saml/sp/consume/okta`).|
|
||||
| Audience (EntityID) | This should be the same as your Firezone `SAML_ENTITY_ID`, defaults to `urn:firezone.dev:firezone-app`. |
|
||||
| Name ID format | EmailAddress |
|
||||
| Application username | Email |
|
||||
| Update application username on | Create and update |
|
||||
|
||||
[Okta's documentation](https://help.okta.com/oie/en-us/Content/Topics/Apps/Apps_App_Integration_Wizard_SAML.htm)
|
||||
contains additional details on the purpose of each configuration setting. In all
|
||||
the fields above, replace `firezone.company.com` with your deployment's external URL.
|
||||
contains additional details on the purpose of each configuration setting.
|
||||
|
||||
|
||||
|
||||
After creating the SAML connector, visit the `View SAML setup instructions` link in
|
||||
the Sign On tab to download the metadata document. You'll need
|
||||
to copy-paste the contents of this document into the Firezone portal in the next step.
|
||||
|
||||
## Add SAML identity provider to Firezone
|
||||
|
||||
In the Firezone portal, add a SAML identity provider under the Security tab
|
||||
by filling out the following information:
|
||||
|
||||
| Setting | Value | Notes |
|
||||
|--- |--- |--- |
|
||||
| Config ID | `Okta` | Firezone uses this value to construct endpoints required in the SAML authentication flow (e.g., receiving assertions, login requests).|
|
||||
| Label | `Okta` | Appears on the sign in button for authentication. |
|
||||
| Metadata | see note | Upload the contents of the SAML metadata document you downloaded in the previous step from Okta. |
|
||||
| Setting | Value | Notes |
|
||||
|---------------------------|----------|--------------------------------------------------------------------------------------------------------------------|
|
||||
| Config ID | Okta | Used to construct endpoints required in the SAML authentication flow (e.g., receiving assertions, login requests). |
|
||||
| Label | Okta | Appears on the sign in button for authentication. |
|
||||
| Metadata | see note | Paste the contents of the SAML metadata document you downloaded in the previous step from Okta. |
|
||||
| Sign assertions | Checked. | |
|
||||
| Sign metadata | Checked. | |
|
||||
| Require signed assertions | Checked. | |
|
||||
| Required signed envelopes | Checked. | |
|
||||
|
||||
|
||||
|
||||
|
||||
After saving the SAML config, you should see a `Sign in with Okta` button
|
||||
on your Firezone portal sign-in page.
|
||||
|
||||
@@ -1,15 +1,16 @@
|
||||
---
|
||||
title: OneLogin
|
||||
sidebar_position: 2
|
||||
sidebar_position: 3
|
||||
description: Firezone's WireGuard based remote access platform supports using OneLogin as a single sign-on provider using a SAML 2.0 connector.
|
||||
---
|
||||
|
||||
:::note
|
||||
This guide assumes you have completed the prerequisite steps
|
||||
outlined [here](/authenticate/saml).
|
||||
(e.g. generate self-signed X.509 certificates) outlined [here](/authenticate/saml#prerequisites).
|
||||
:::
|
||||
|
||||
Firezone supports Single Sign-On (SSO) using OneLogin through the generic SAML 2.0 connector. This guide will walk you through how to configure the integration.
|
||||
Firezone supports Single Sign-On (SSO) using OneLogin through the generic SAML 2.0 connector.
|
||||
This guide will walk you through how to configure the integration.
|
||||
|
||||
## Create a SAML connector
|
||||
|
||||
@@ -19,35 +20,42 @@ configuration settings under the under the configuration tab.
|
||||
|
||||
The following fields should be filled out on this page:
|
||||
|
||||
| Setting | Value |
|
||||
|--- |--- |
|
||||
| Audience (EntityID) | `urn:firezone.dev:firezone-app` |
|
||||
| Recipient | `https://firezone.company.com/auth/saml/sp/consume/onelogin` |
|
||||
| ACS URL Validator | `^https:\/\/firezone\.company\.com\/auth\/saml\/sp\/consume\/onelogin` |
|
||||
| ACS URL | `https://firezone.company.com/auth/saml/sp/consume/onelogin` |
|
||||
| Login URL | `https://firezone.company.com/auth/saml/auth/signin/onelogin` |
|
||||
| SAML initiator | `Service Provider` |
|
||||
| SAML signature element | `Both` |
|
||||
| Setting | Value |
|
||||
|------------------------|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
|
||||
| Audience (EntityID) | This should be the same as your Firezone `SAML_ENTITY_ID`, defaults to `urn:firezone.dev:firezone-app`. |
|
||||
| Recipient | This is your Firezone `EXTERNAL_URL/auth/saml/sp/consume/:config_id` (e.g., `https://firezone.company.com/auth/saml/sp/consume/onelogin`). |
|
||||
| ACS URL Validator | This field is regex to ensure OneLogin posts the response to the correct URL. For the sample URL below, we can use `^https:\/\/firezone\.company\.com\/auth\/saml\/sp\/consume\/onelogin` |
|
||||
| ACS URL | This is your Firezone `EXTERNAL_URL/auth/saml/sp/consume/:config_id` (e.g., `https://firezone.company.com/auth/saml/sp/consume/onelogin`). |
|
||||
| Login URL | This is your Firezone `EXTERNAL_URL/auth/saml/auth/signin/:config_id` (e.g., `https://firezone.company.com/auth/saml/sp/consume/onelogin`). |
|
||||
| SAML initiator | Service Provider |
|
||||
| SAML signature element | Both |
|
||||
| Encrypt Assertion | Checked. |
|
||||
|
||||
[OneLogin's docs](https://onelogin.service-now.com/support?id=kb_article&sys_id=912bb23edbde7810fe39dde7489619de&kb_category=93e869b0db185340d5505eea4b961934)
|
||||
provide a good overview of each field's purpose. In all the fields above, replace `firezone.company.com`
|
||||
with your deployment's external URL.
|
||||
provide a good overview of each field's purpose.
|
||||
|
||||
|
||||
|
||||
Once complete, save the changes and download the SAML metadata document
|
||||
found unde the `More Actions` dropdown.
|
||||
found unde the `More Actions` dropdown. You'll need
|
||||
to copy-paste the contents of this document into the Firezone portal in the next step.
|
||||
|
||||
## Add SAML identity provider to Firezone
|
||||
|
||||

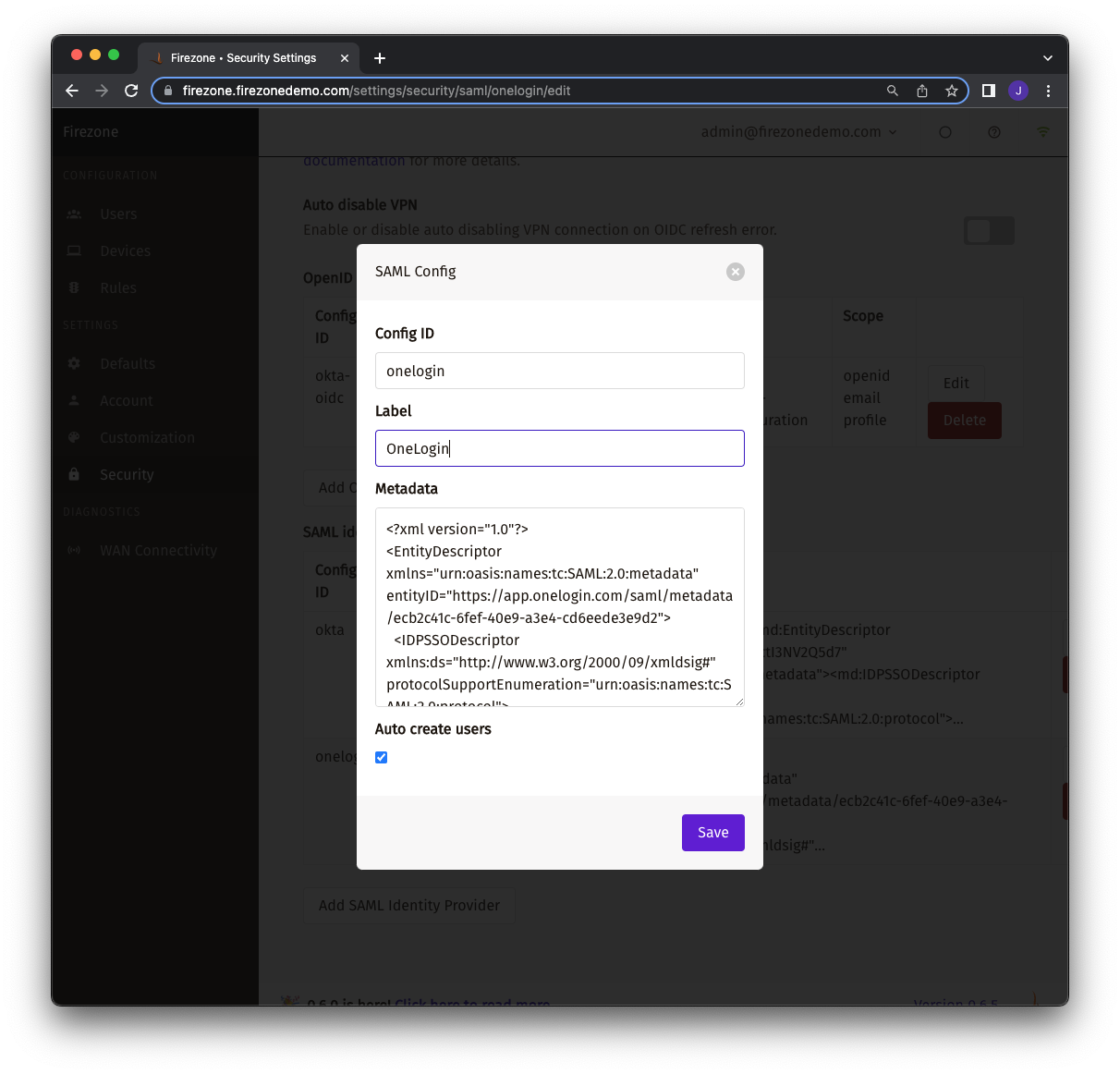

In the Firezone portal, add a SAML identity provider under the Security tab
|
||||
by filling out the following information:
|
||||
|
||||
| Setting | Value | Notes |
|
||||
|--- |--- |--- |
|
||||
| Config ID | `onelogin` | Firezone uses this value to construct endpoints required in the SAML authentication flow (e.g., receiving assertions, login requests).|
|
||||
| Label | `OneLogin` | Appears on the sign in button for authentication. |
|
||||
| Metadata | see note | Upload the contents of the SAML metadata document you downloaded in the previous step from OneLogin. |
|
||||
| Setting | Value | Notes |
|
||||
|--- |--- |--- |
|
||||
| Config ID | `onelogin` | Used to construct endpoints required in the SAML authentication flow (e.g., receiving assertions, login requests).|
|
||||
| Label | `OneLogin` | Appears on the sign in button for authentication. |
|
||||
| Metadata | see note | Paste the contents of the SAML metadata document you downloaded in the previous step from OneLogin. |
|
||||
| Sign assertions | Checked. | |
|
||||
| Sign metadata | Checked. | |
|
||||
| Require signed assertions | Checked. | |
|
||||
| Required signed envelopes | Checked. | |
|
||||
|
||||
|
||||
|
||||
|
||||
After saving the SAML config, you should see a `Sign in with OneLogin` button
|
||||
on your Firezone portal sign-in page.
|
||||
|
||||
